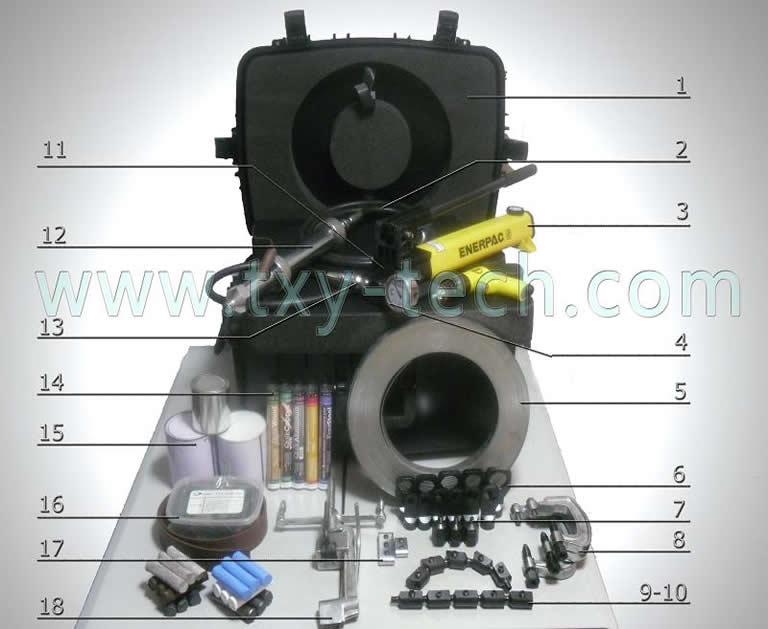

Injection Tools Package
1 Tool Case
2 High-Pressure Hose
3 Manual Hydraulic Oil Pump
4 Manometer (0 ~ 600 bar)
5 Steel Belt
6 Screw Filling Joint
7 Injection Valve
8 G-Clamp (L M S)
9 Reversing Joint 90o
10 Reversing Joint 120o
11 Gauge Stand Joint (three way type)
12 TXY-Injection Gun
13 Quick Coupling (closed type M&F)
14 PSI Epoxy Putty Quick Repair Series
15 Heat-Proof Quick Steel Paste
16 TXY Series Sealants
17 Steel Belt Clip
18 Belt Tighter (manual)

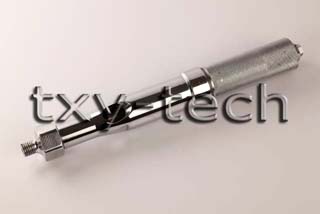

Injection Gun
a. TXY-II mechanical reset injection gun
b. Hydraulic rest injection gun
Oil Pump
a. Manual Hydraulic Oil Pump
TXY manual pump
|
TXY manual pump | |||
|
Pressure |
Max Pressure |
MPa |
63 |
|
Min Pressure |
1 | ||
|
High Pressure |
ml/time |
2.3 | |
|
Low Pressure |
12.5 | ||
|
Oil Storage |
ml |
700 | |
|
Weight |
kg |
9 | |
|
Size (L x W x H) |
mm |
630 x 175 x 176 | |
b. Pneumatic Pump
P-2810
|
Model |
Max. Pressure |
Capability |
Air pressure |
Oil Storage |
Weight | |
|
P-2810 |
MPa |
ml /min |
ml /min |
MPa |
ml |
ml |
|
63 |
Low pressure |
High pressure |
0.5 ~ 0.7 |
1650 |
5.5 | |
|
1324 |
524 | |||||
c. Double-acting Pump
P-84
|
TXY manual pump | |||
|
Pressure |
Max Pressure |
MPa |
70 |
|
Min Pressure |
2.5 | ||
|
Capability |
High Pressure |
ml/time |
16.22 |
|
Low Pressure |
2.46 | ||
|
Oil Storage |
ml |
2200 | |
|
Weight |
kg |
10.9 | |
|
Size (L x W x H) |
mm |
630 x 175 x 176 | |
Manometer
High Pressure Hose
Reversing Joint
90o 120o
Banding Machine
s, pumps
G-clamp
Injection Valve
Notes: Applied with injection gun and clamps, injection valves are categorized as M8/M20, M10/M20, M12/M20 and M14/20.
Screw Joint
Notes: Sizes ranging from M12, M14, M16, M18, M20, M22, M24, M27, M30, M32, M34 and M36
